MongoDB schema design

Quick start guide for MongoDB schema design in Moon Modeler.

  1. New project
  2. MongoDB schema design - collections
  3. MongoDB schema design - documents
  4. Embedded documents vs References
  5. Code generation

1. New Project

To create a new project, click the New item on toolbar and select MongoDB project type.

2. Design collections

To add new MongoDB collection to your design, click the Collection item on toolbar and then click the main diagram area.

MongoDb schema design - new collection

New object appears in the diagram. You can edit MongoDB collection properties via Right Side panel:

Edit properties

If you prefer modal dialogs, double click an item on diagram or open popup and choose Edit:
Edit collection

Collection properties

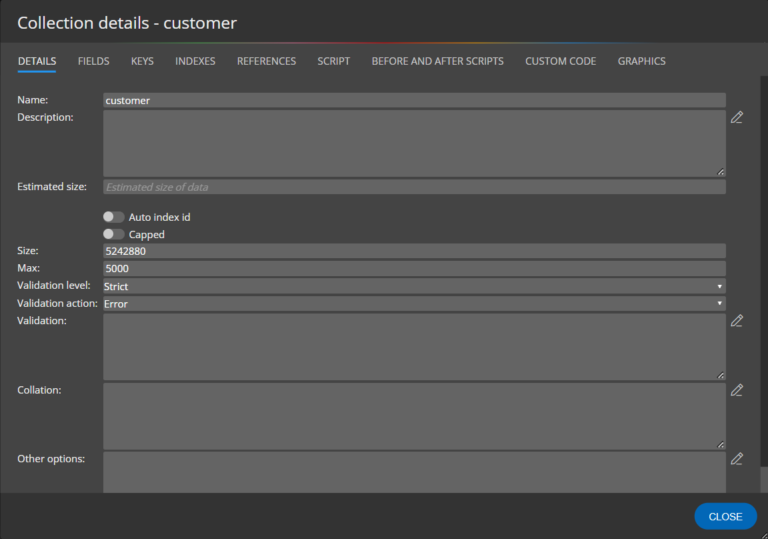

In section Details collection settings can be specified. For example: caped collection, validation level etc.

Collection

Fields

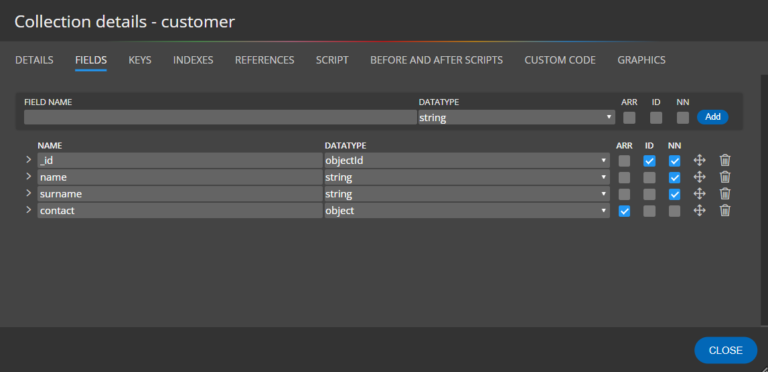

In section Fields you can add new fields to collections to your MongoDB schema design. Specify new field name, datatype and click Add.
ARR indicates Array.
NN represents required field. (not null)

New field

Field specifics

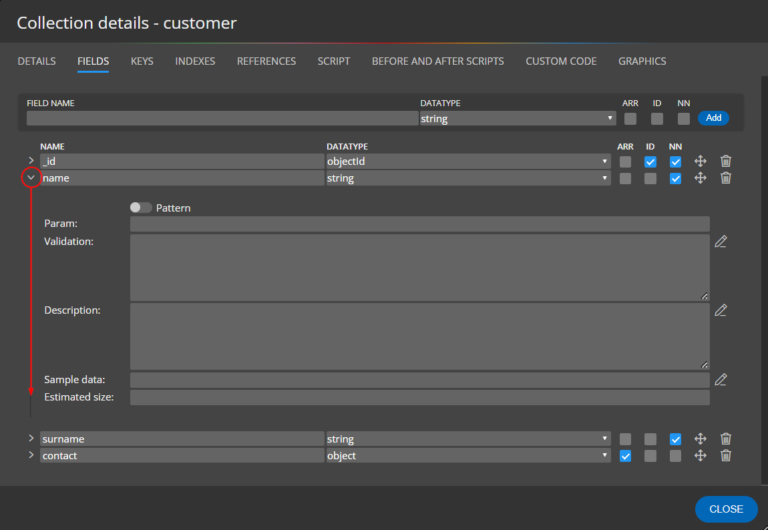

To access area where MongoDB field specifics can be modified, click the arrow left to the field name.

MongoDB schema design - field details

3. Design documents

MongoDB documents are objects that can be embedded to collections or other documents.

Example: See collection customer. Field contact contains embedded document contact. And this document contains two fields: addresses and phones. Both the fields are arrays and contain embedded documents address and phone.

MongoDB chema design

To create new document, click the Document icon on toolbar and then click the main area.

Embedding documents to collections

To embed the document to a collection, edit the target collection and select document name from Datatype selectbox.

Embedded document

Collections vs Documents in MongoDB design process

During your design process you might consider changing document to collection or vice versa. In order to avoid manual redefinition, enable or disable the Document switch in properties. This switch allows you to change document to collection and let the tool generate MongoDB validation script for the collection.

Collection vs document

4. References in MongoDB schema design

References represent links between collections. In the following example, collection article contains reference to collection vendor. In the article collection only ID is stored. Compare it with the vendor collection where field address contains embedded document address. Such field contains full data, incl. street, city, zip and country values.

References

5. Code generation

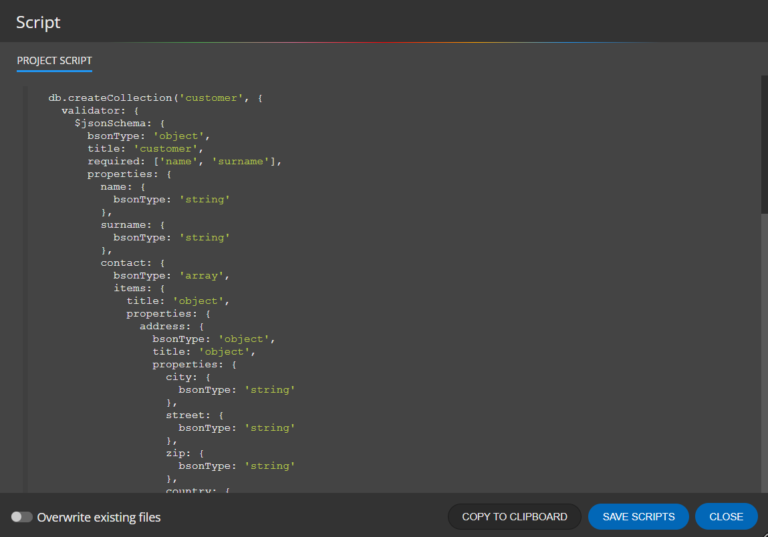

To preview validation script for your MongoDB schema design, click the Script tab on collection detail.

To save scripts to files, click the Script icon on toolbar and then click Save script.

Validation scripts

This is the end of the MongoDB schema design page. Thanks for reading!
