Visualization of existing MySQL databases

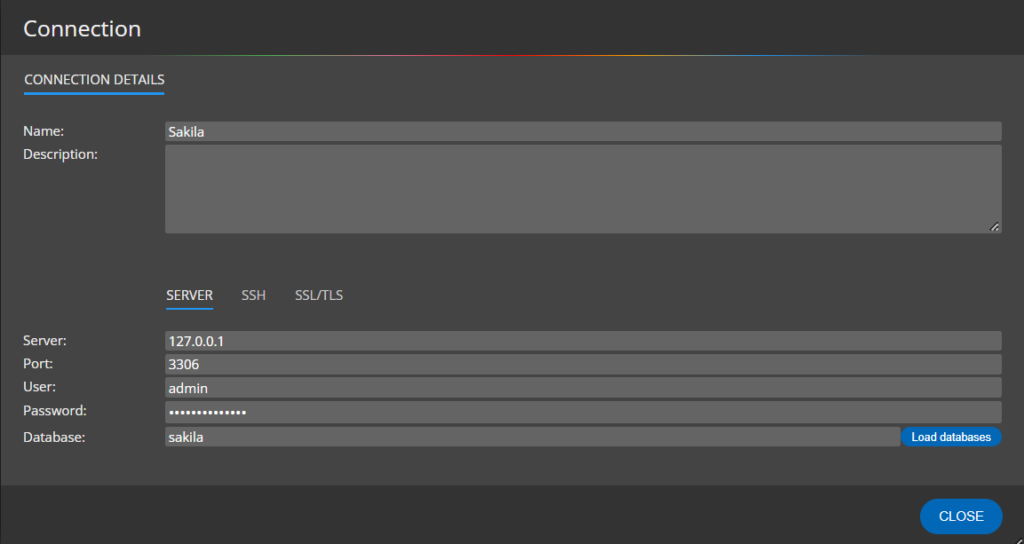

All database connections are available in the Connections section. To create a new connection, click the Connections button on the main toolbar, and then click Create New Connection. A new modal form opens. Select MySQL and enter the connection details.

When you are finished, click the Save Connection button.

Database connections

Your new MySQL connection will appear in the list of all database connections.

To start the reverse engineering process, click Connect and load the existing database connection. As a result, you will see an ER diagram for your database structure.

Load existing MySQL database

If you wish to visualize another MySQL database, either create a new connection or create a copy of an existing connection by clicking the Duplicate link.

#
