Mongoose schema design



Note: this page is outdated. Please visit the latest page Mongoose schema design



1. New project

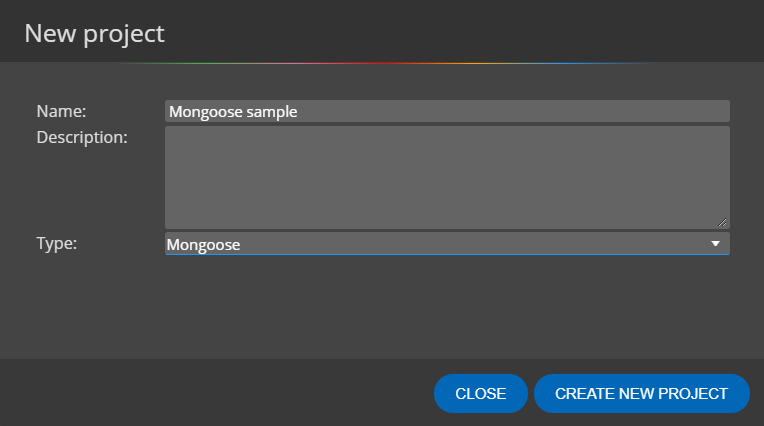

To create a new project, click the New item on toolbar and select Mongooose project type.

Mongoose project
Later you can edit the project and choose colors for background, lines and footer.

2. Design schemata

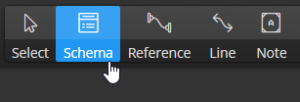

To add a new schema to your Mongoose schema design, click the Schema item on toolbar and then click the diagram area.

New mongoose schema

New object appears in the diagram. You can edit schema properties via Right Side panel:

Mongoose schema properties

If you prefer modal dialogs, double click an item on diagram or open popup and choose Edit:

Edit Mongoose schema - context menu

Properties

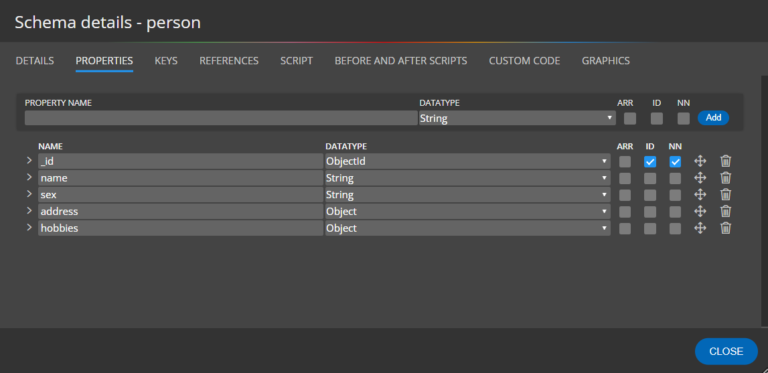

You can add new properties to a Mongoose schema in section Properties.
Specify new property name, datatype and click Add.

Param is a logical information only and doesn't affect generated code.
NN stands for Not Null and indicates a required property.
ARR stands for Array.

Mongoose schema properties of fields

Property specifics

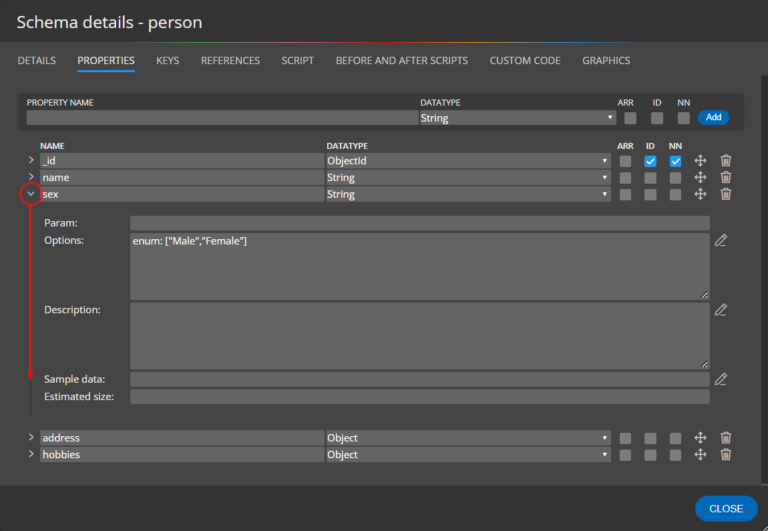

Property details can be defined in the expanded area.

Section for Mongoose fields - expanded area

3. Define hierarchies

In Mongoose projects you can easily define hierarchical structures.

Direct object properties

If you select Object as the data type, you can add and modify properties on the Children tab. The object properties will then be displayed in the diagram.

Mongoose hierarchy

Child schema

Another option is to create two schemas and then select the second schema as the data type for the main schema.

Another schema

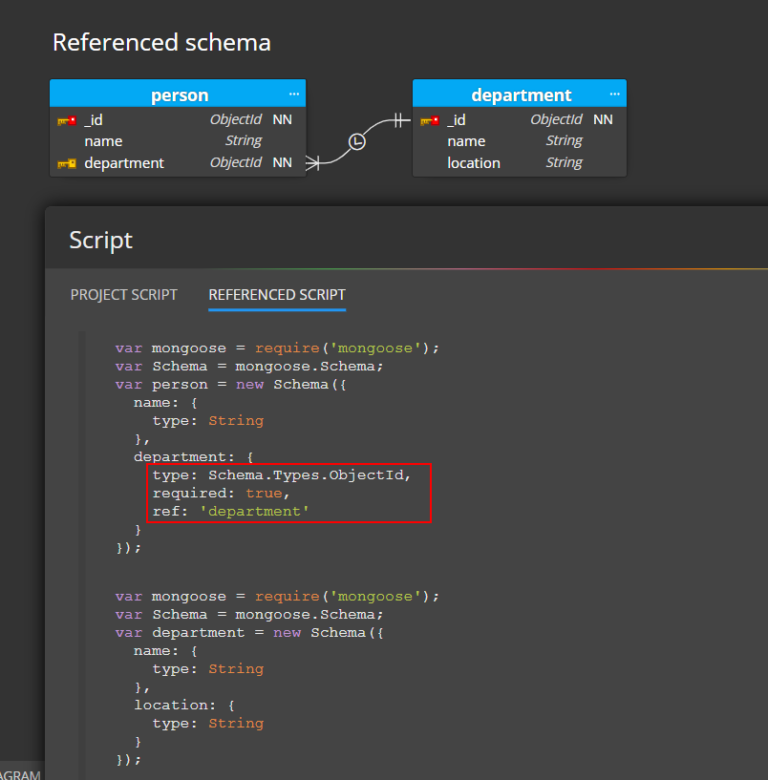

Referenced schema

Alternatively, you can also create a reference between two schemas.

Referenced Mongoose Schema



4. References in Mongoose schema design

References represent links between schemata. To create a new reference, click the Reference icon on toolbar and then click source schema and then target schema in your diagram. New property is added to target schema automatically.

References in Mongoose Schema

5. Script generation for Mongoose

To preview script generated for Mongoose click the Script tab on schema detail.

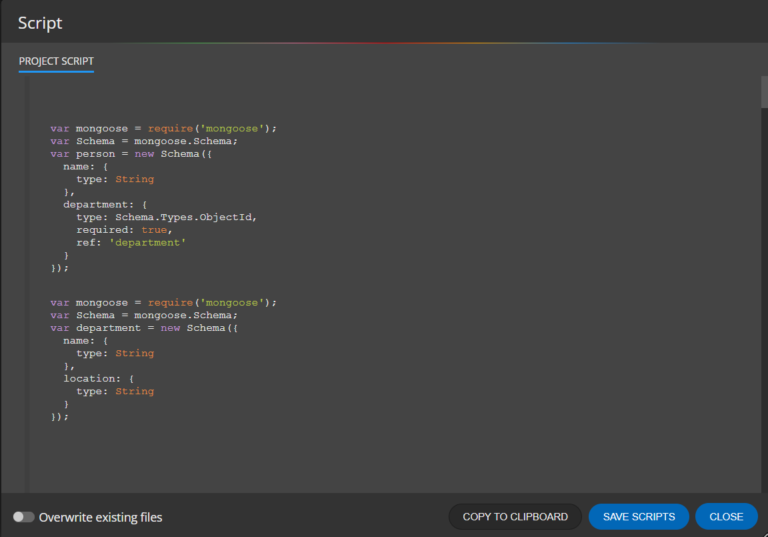

To save scripts to files, click the Script icon on toolbar and then click Save scripts button.

Mongoose script generation

We wish you a pleasant work and simple creation of your Mongoose Schema Design.

For more information about Mongoose, visit https://mongoosejs.com/
