GraphQL schema design

Quick start guide for GraphQL schema design in Moon Modeler.

1. New project

To create a new project, click New on the toolbar and select the GraphQL project type.

graphql project

2. GraphQL types and inputs

To visually design a GraphQL schema, add new objects to the diagram. On the main toolbar, you can find the Add item icon.
Click the icon and select type of the object you wish to add to the diagram.

add object to graphql schema design

Then click the diagram area. New graphical object will appear on the diagram.

Edit properties in Right Side panel:

sidebar

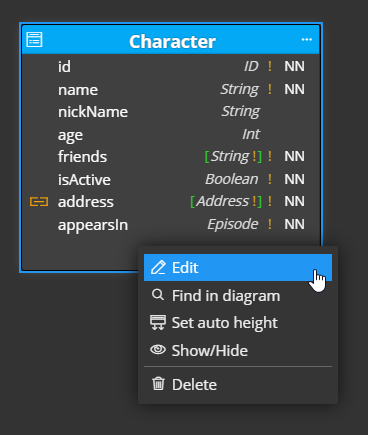

Alternatively, you can double click the graphics or right-click the item and choose Edit.

edit properties

Type properties

Basic type settings can be specified in the section Details.

Fields

In section Fields, you can add new type fields. Specify new field name, datatype or enum and click Add.

  • ARR indicates Array.
  • NN represents Not Null field.

Detailed field specifics can be defined in a collapsible/expandable area.

  • Arguments and Descriptions will be included in the generated script.
  • Sample data will appear in the diagram if the Sample data mode is activated.

fields in graphql schema diagram

Types in types

If you want to use an already existing type for new field datatype, draw a reference between the existing type and the new type.
Name of the existing type will appear as the only item in the datatype dropdown. One of the advantages of visual modeling is, that when you decide to rename the referenced type, the name will change automatically in the field definitions.

types in types

Inputs are managed in Moon Modeler in a similar way.

3. Interfaces

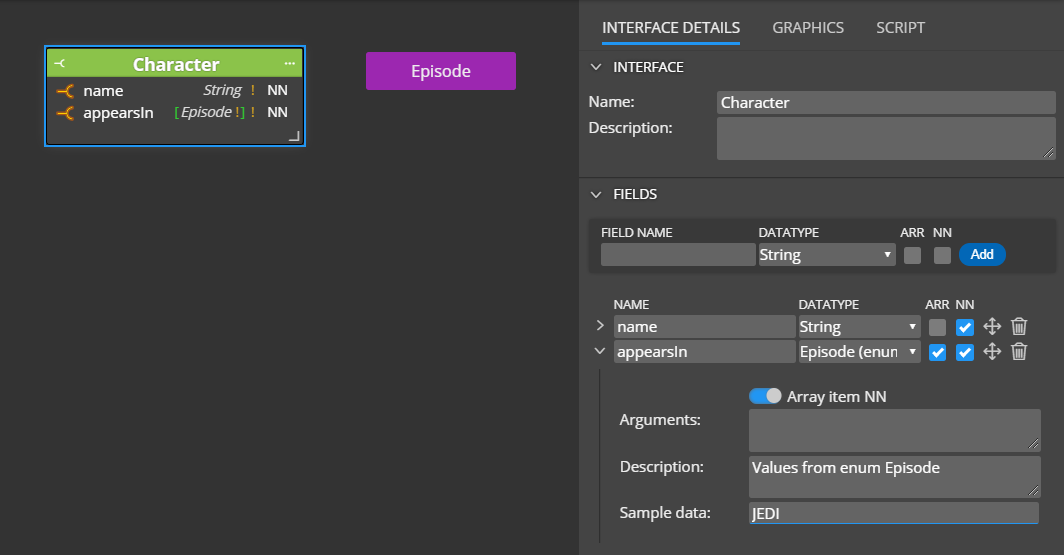

Interfaces can be created the same way as types and you can also add fields to interfaces.

interfaces

One key differentiator is that when you draw a reference between an interface and type, all the fields defined in the interface will migrate to the type automatically. When you add new fields to the interface, the new field will also be added to all referenced types.

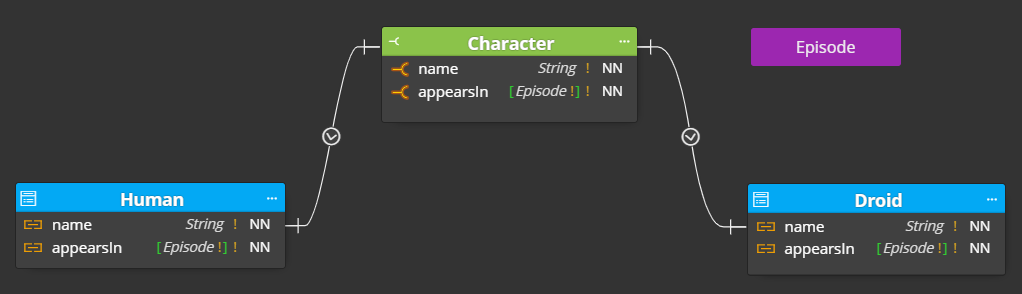

On the following screenshot you can see interface Character and types Human and Droid. Fields that migrated from the interface to types have "link" icon left to the field name. If you want to remove a migrated field from a type, delete the reference line from the diagram.

graphql interfaces

4. Enums

 Enums can be added to a diagram and used in field definitions specified for types, inputs or interfaces.

enum

Enum used in the diagram:

enum in graphql diagram

5. References

References can be created:

  • From Type to Type
  • From Interface to Type
  • From Type to Union
  • From Type to Input

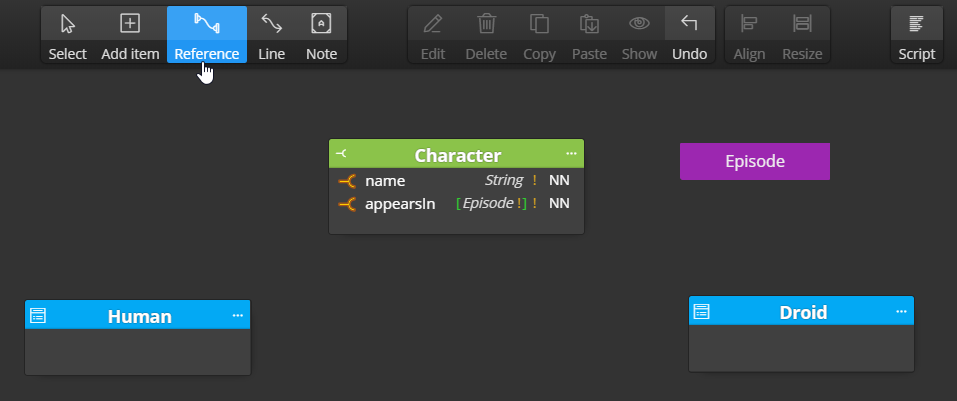

To add a new reference to the diagram, click the Reference icon, then click source object (type or interface) and then click target object (type, input or union).

references

graphql reference

6. Unions

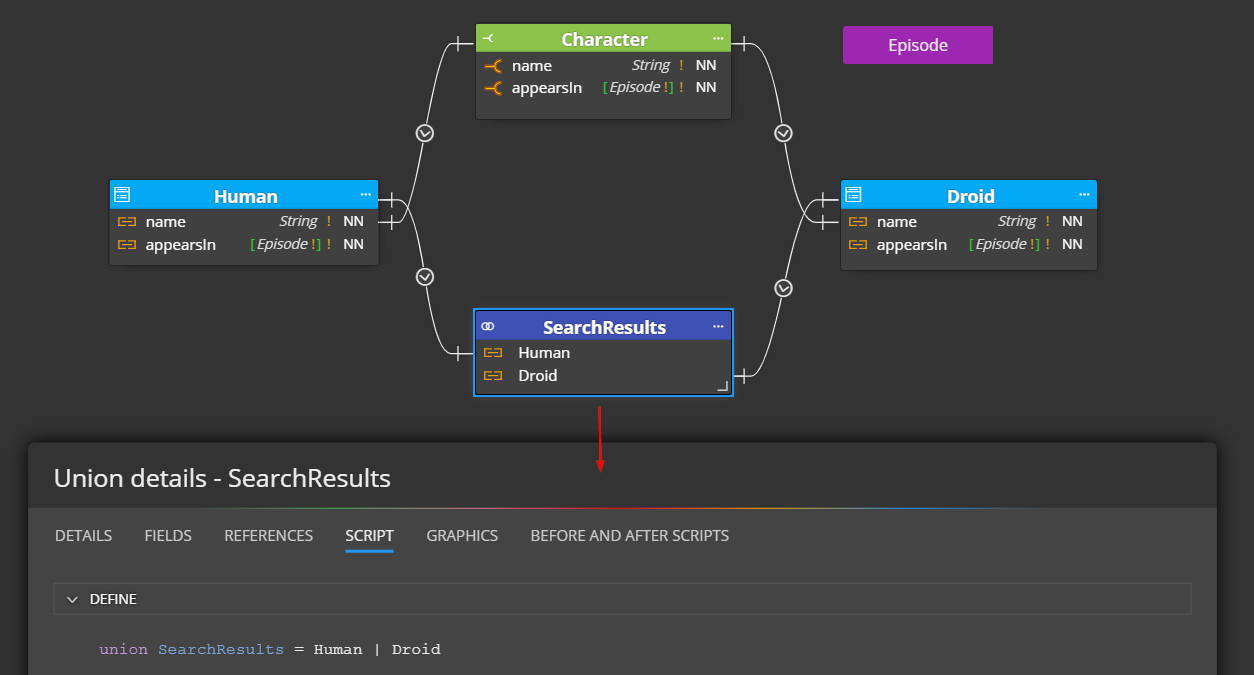

Add new union to the GraphQL schema diagram and then add references between type and union to add fields to the uinon object.

add union

Example:

graphql schema design and unions

7. Queries and mutations

Queries and mutations are displayed as simple graphical objects and definition can be specified by code.

8. Code generation

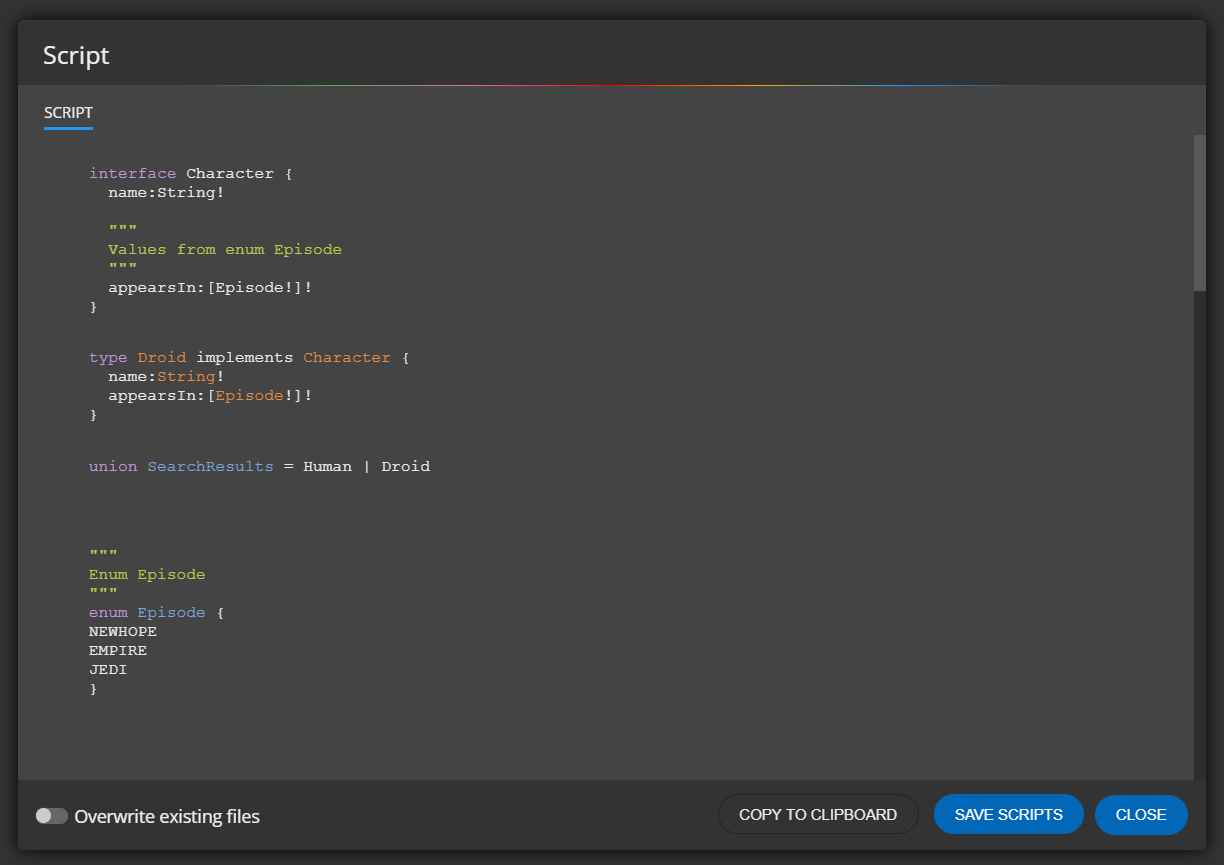

To generate GraphQL schema file, click the Script icon on the main toolbar.

graphql schema script

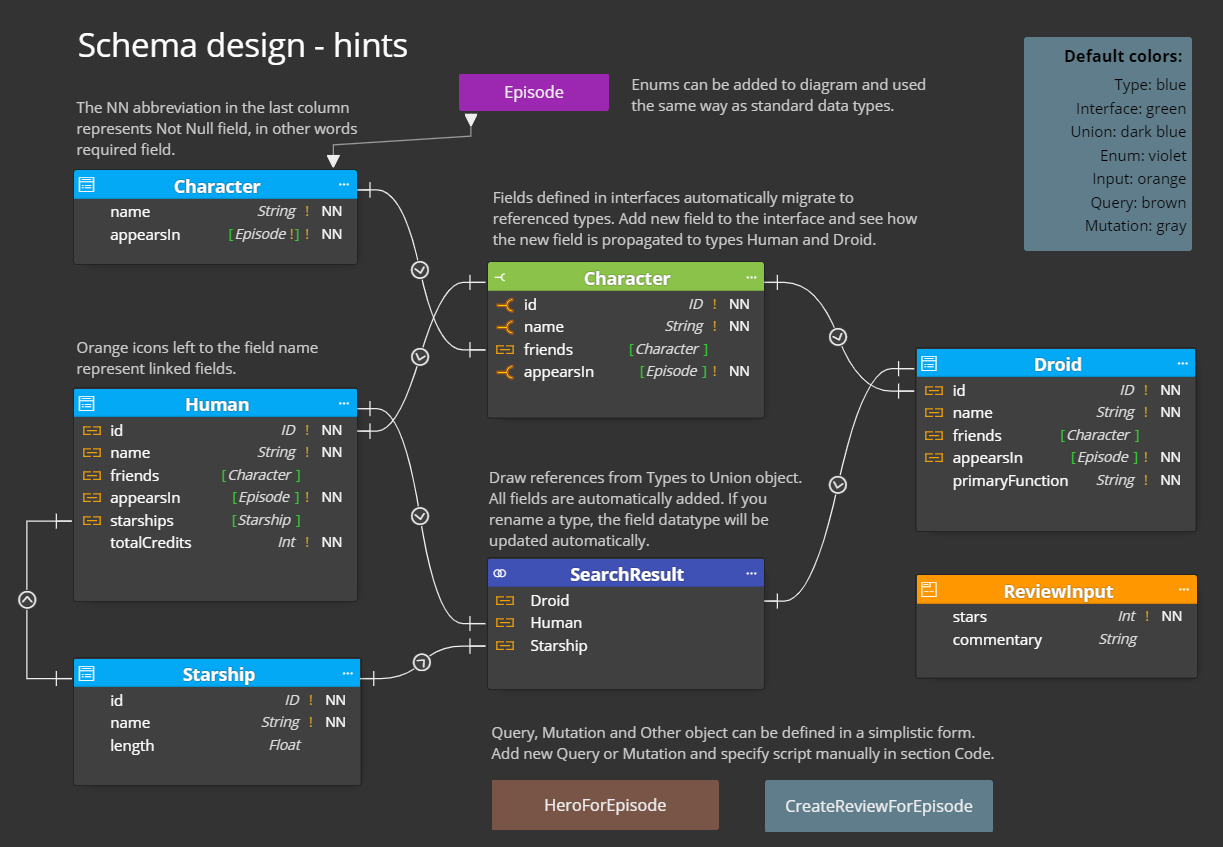

9. Other features and visual elements

Notes, lines and other information that can be displayed in a diagram will help you keep the structure well documented.

GraphQL diagram

#
